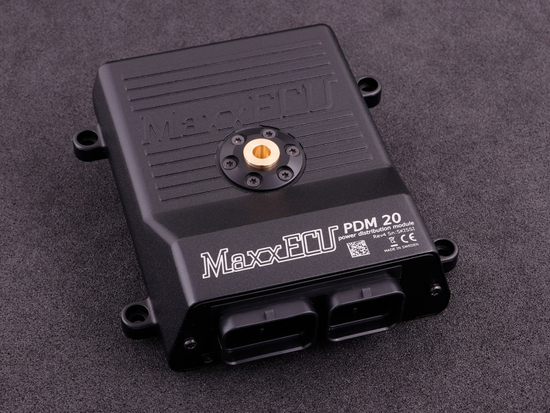

MaxxECU 2098 PDM20 power distribution module (unit without accessories)

The MaxxECU PDM20 is an advanced Power Distribution Module for MaxxECU units and is designed to replace fuses and relays in a modern way.

Selected features:

• Max 230A
• 20 outputs (8x25A 8x15A 4x8A)
• 7 digital / analog 0-24V inputs
• All outputs can be PWM controlled
• Dedicated +5V power supply and sensor ground
• CAN bus for communication and setup management with MaxxECU MTune PC software (MaxxECU ECU required for configuration)
• Overcurrent protected adjustable levels with automatic restart with soft start option
• Warning levels for under over currents
• Works with all MaxxECU devices
• Support for CAN keypads
• Error code handling
• Built-in energy saving mode that draws only 0.004A

MaxxECU PDM20 general:

• -40 to +125 deg C temperature range
• Reverse polarity protection
• 6-22V operating voltage
• 32-bit ARM Cortex-M3 CPU
• 132x140x42mm (excluding protruding connectors)

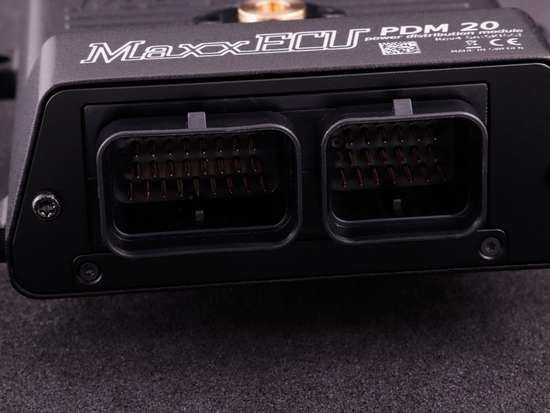

• 1x 34-pin and 1x 26-pin Superseal connectors

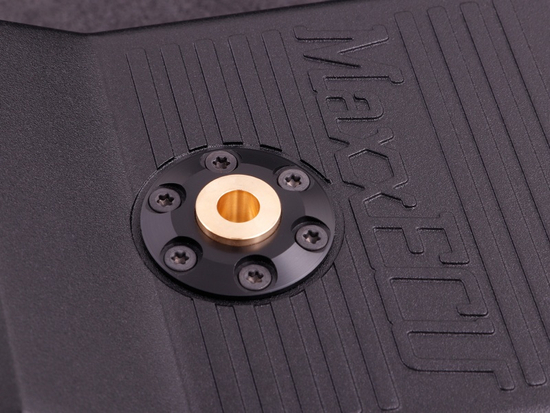

• M6 screw for battery connection
• PC communication over CAN-bus via any MaxxECU to MTune

MaxxECU PDM20 inputs:

• 7 digital / analog (0-24V) inputs
• Software selectable 12V pullup
• CAN keypad (4,6,8,12 keys)

MaxxECU PDM20 outputs:

• 230A maximum current throughput
• All outputs are PWM capable
• Current and voltage measuring
• 6 outputs with H-bridge drivers
• Overtemperature protection
• Output overcurrent protection via emulated fuse characteristics and hardware backup protection
• Monitored +5V sensor supply output
• Outputs can be paired to increase current capacity

Products included:

• MaxxECU PDM20 unit without accessories
• MaxxECU PDM20 accessories
• MaxxECU PDM20 wiring diagram (printed)

Please note! Connectors are sold separately, PN are MAX 1999 and MAX 2000.
