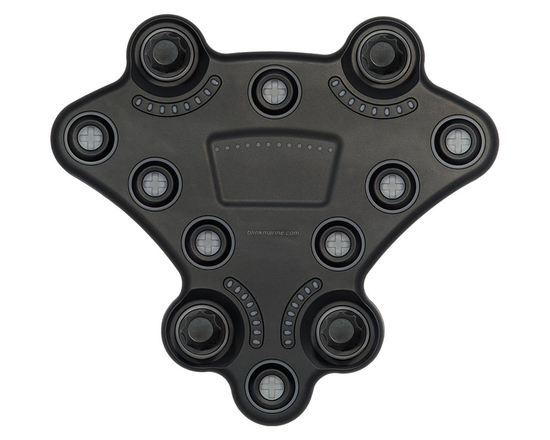

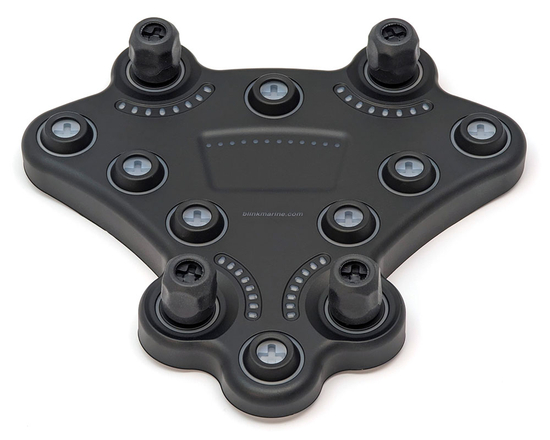

MaxxECU 2004 CAN keypad (12 keys) multi color LED

CAN based steering wheel panels (keypads) from Blink Marine in Italy using the J1939 CAN protocol. Full support in all MaxxECU and other units.

Pre programmed with J1939 CAN standard which MaxxECU uses.

Please note! No icon packs are included, must be bought separately. Steering wheel is not included.

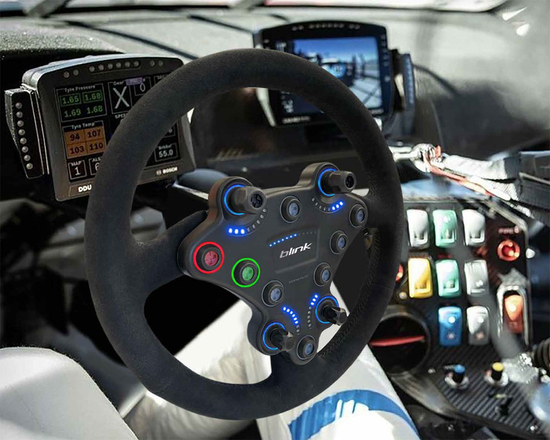

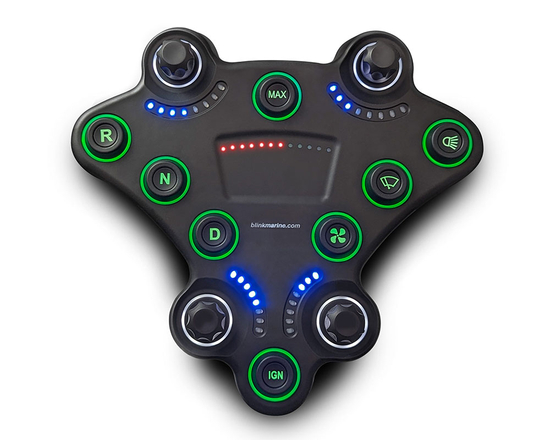

RacePad is the ultimate CAN-bus steering wheel button panel designed by Blink Marine to elevate your racing experience to the next level. With 4 rotary knobs and 8 easy-to-reach buttons, RacePad is the ideal addition to any race car, enabling both professional drivers and amateurs to fully customize their driving style. Thanks to individualized button icons and LED colour selection, the possibilities are endless.

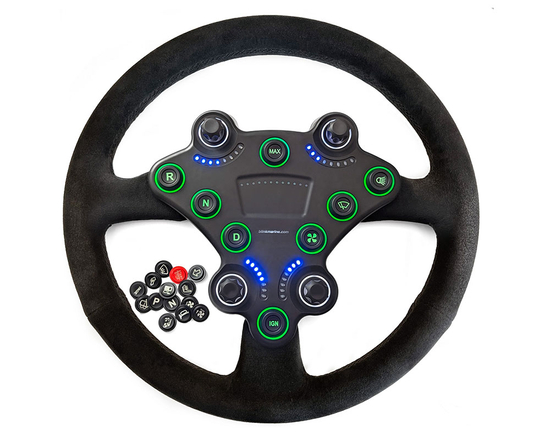

With 4 rotary knobs and 8 easy-to-reach buttons, RacePad is the ultimate CAN-bus steering wheel button panel designed by Blink Marine. The perfect companion for your racing steering wheel!

Standard features:

• Reconfigurable keys
• LED state & status configurable
• Backlit icons
• Multicolor LED indicator rings
• Laser etched icon inserts
• ON/OFF, momentary, toggle & scroll

Software features:

• Change CAN Racepad addresse independently
• Periodic status transmission
• Heartbeat
• Event status transmission
• LED acknowledgement
• Address claim transmission
• CANopen and J1939
• Programmer’s manual available to help support
