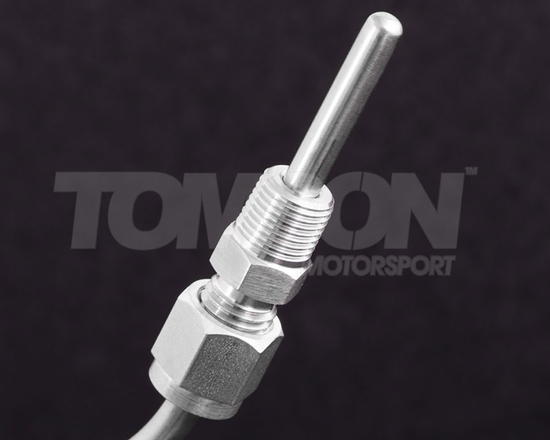

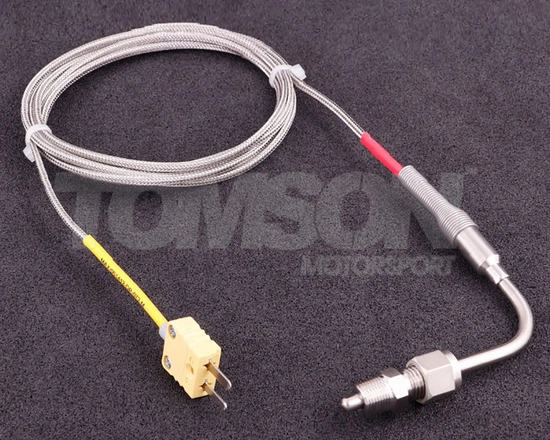

MaxxECU 1789 exhaust gas temperature (EGT) sensor 90° with covered tip

Primarily designed to be connected directly to MaxxECU, but obviously work with other systems aswell.

• 4.7 mm thickness of the sensor
• 90° angle
• 1.80 m wire lenght with connector
• Reaciton time: 1250ms
• -100°C to 1300°C (-148°F to 2375°F)

Covered sensor tip. May be needed with ALS and some race E85 fuels.

For tapered thread compression fitting to the stainless steel bung: about 2.5 turns to finger tight, then 3/4 of a wrench turn.

For tapered thread compression fitting to the mild steel bung: about 3.25 turn to finger tight, then 1 wrench turn.

What is important is that the threads do not leak. If the fitting is overtightened with a wrench the fitting will be impossible to remove. It is important that the fitting is not overtightened.
