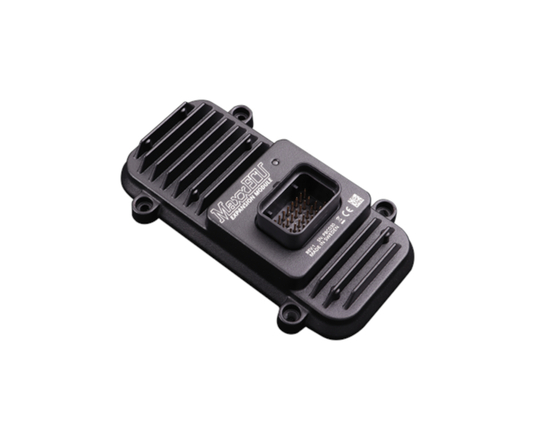

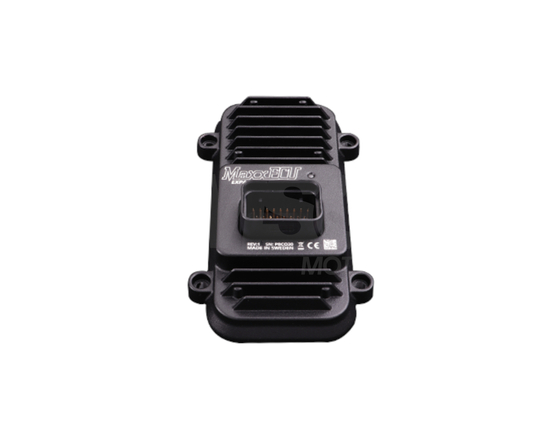

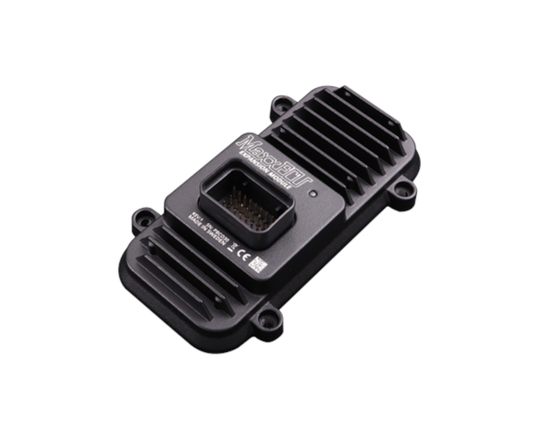

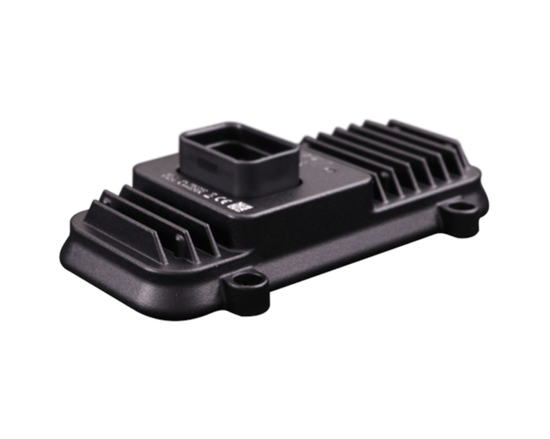

MaxxECU 2532 Expansion Module (unit with flying lead wiring harness)

• Accepts 0-5V analog or digital signals, max 24 V.
• Digital threshold: 3 V. Selectable 2.5 kΩ 5 V pull-up resistors.
• Analog update rate: Selectable up to 2 kHz. Input resistance: 200 kΩ.
• Switches/buttons and other slow signals in digital mode.
• Note: Ethanol sensors, etc. are not supported here - use PULSE inputs instead.

MaxxECU Expansion Module PULSE Inputs

• Accepts digital or VR signals, max 200 V, up to 30 kHz.
• Input resistance: 62 kΩ.
• Selectable digital, VR input or custom thresholds.
• 1kHz max update rate transmitted to the ECU.

MaxxECU Expansion Module 12V outputs

• 12 V sourcing output for general loads.
• Active = 12 V, off = floating.
• Max 5 A continuous. Protected against overload, short circuit. Flyback protection 30V.
• PWM up to 20kHz.
• Update speed 2ms (GEN1), 0.5ms (GEN2) (depening on CAN-bus load).

MaxxECU Expansion Module h-bridge outputs

• 12 V push-pull (half-bridge) output for motors or loads.
• Active = 12 V, off = ground.
• For bidirectional motors (e.g., throttles): connect the load between two H-bridge outputs.
• For general loads: connect the load between one H-bridge output and ground.
• Overload and short-circuit protected. PWM current-limiting.
• Max 7.5A–15 A (selectable), 10A continuous.
• PWM up to 20kHz.
• Update speed 2ms (GEN1), 0.5ms (GEN2) (depening on CAN-bus load).

MaxxECU Expansion Module technical

• Black powder-coated aluminium enclosure with IP68 environmental protection.
• Superseal 1.0 automotive connectors for reliable motorsport-grade wiring.
• Seamless CAN integration with MaxxECU and MTune, requiring no manual CAN message configuration.
• All inputs and outputs are protected against overvoltage, reverse polarity, overload, and short circuits.
• 12 analog inputs accepting 0–5 V analog signals or up to 24 V digital inputs with selectable pull-up resistors.
• PULSE inputs supporting digital or VR sensors up to 30 kHz with configurable input modes and thresholds.
• Selectable analog input sampling rates of up to 2 kHz, with pulse data transmitted to the ECU at up to 1 kHz.
• 4 high-current 12 V sourcing outputs, capable of 5 A continuous per channel with integrated flyback protection.
• 4high-current H-bridges supporting bidirectional motor control or high-power outputs, with selectable 7.5–15 A current limiting and 10 A continuous capability.
• Designed to expand any MaxxECU with 12 analog inputs, 4 pulse inputs, 4 high-current 12 V outputs, and 2 configurable H-bridges while being fully configured from within MTune.
• Up to 4 modules with easy-to-use pre-defined configuration on GEN2 ECUs, 1 module on GEN1 ECUs. Any number of modules can be used on any ECU brand with user-defined CAN configuration.
• CAN 250kbit to 1mbit (CANFD for future use).
• ARM dual core CPU.
• Current consumption: 45mA.
• Weight: 195g.
• 80x138x35mm including protruding connectors.

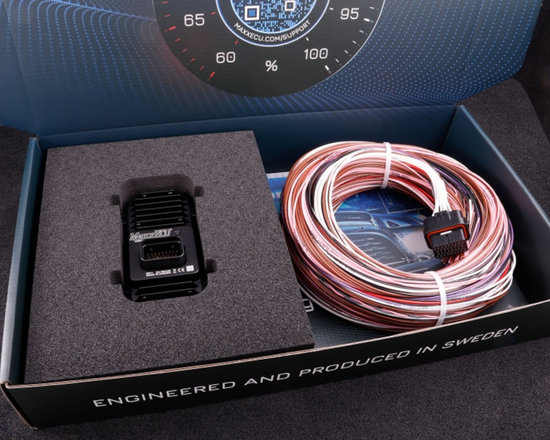

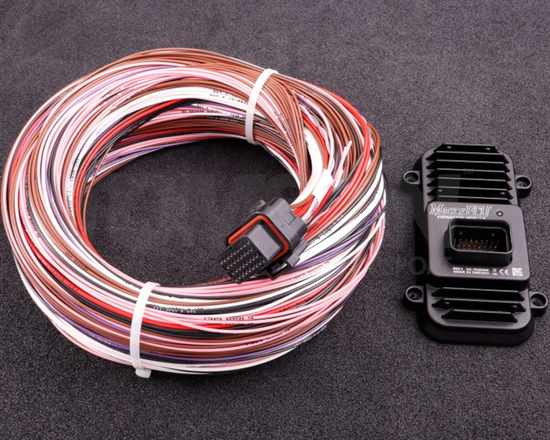

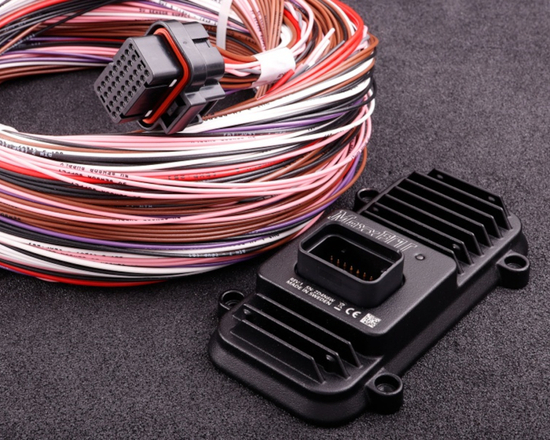

Kit includes:

• MaxxECU Expansion Module
• MaxxECU Expansion Module harness (5m)
