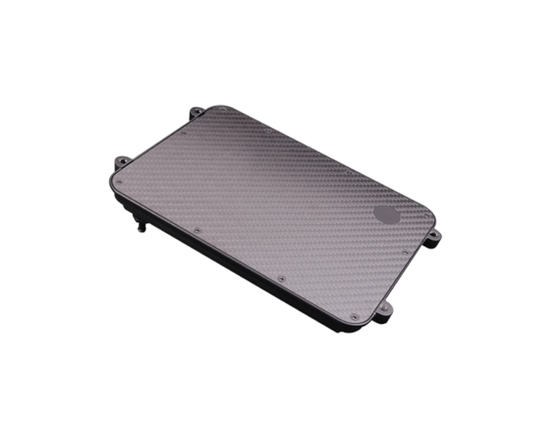

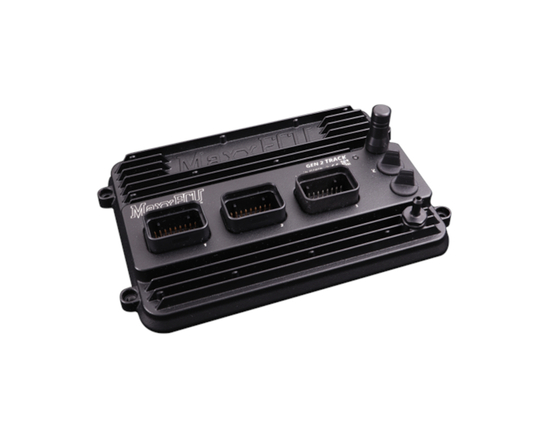

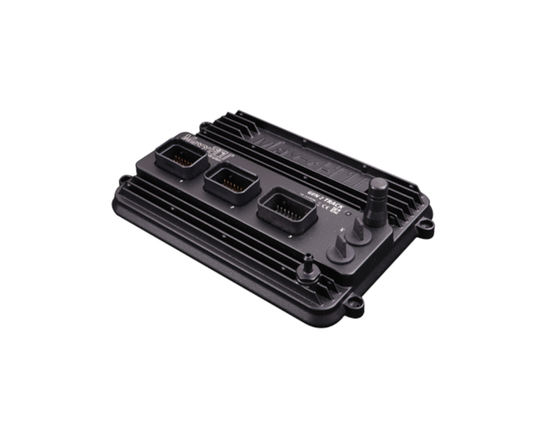

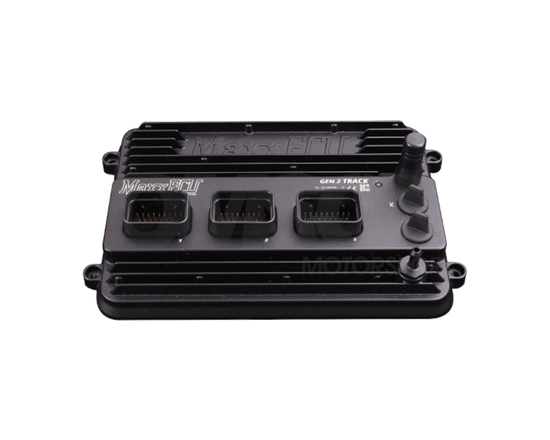

MaxxECU GEN2 TRACK 2543 standalone computer (unit with basic accessories)

The MaxxECU GEN2 TRACK is engineered for high-performance engines that demand precision. With V8 support, dual wideband lambda, dual knock control, high-speed logging, and advanced tuning capabilities, it gives you the confidence to push harder. It comes with the intuitive MTune software for seamless tuning and real-time monitoring, plus full control with the wireless MDash Android app, taking your setup to the next level.

Greatly expanded internal logging with high-speed recording of virtually every ECU channel for professional analysis. 1000Hz, all 2000+ channels.

Script

Powerful Lua scripting allows advanced user-defined strategies, custom CAN communication and virtually unlimited expandability.

Tune

Fully compatible with existing GEN1 tunes, making upgrades simple while unlocking the full potential of the GEN2 platform.

Software

Same familiar MTune and MDash software, now enhanced with faster communication, new features and continuous platform development.

More and better analog inputs

Improved analog inputs with configurable pull-ups, greater flexibility and expanded sensor compatibility.

Waterproof IP68

Black powder-coated aluminum enclosure with IP68 protection for reliable operation in the harshest environments.

WiFi and Bluetooth

Built-in WiFi and Bluetooth enable fast wireless tuning, diagnostics and dashboard connectivity without additional hardware.

Higher processing power

A next-generation processor delivers faster calculations, increased precision and more advanced control strategies.

Protected I/O

Every input and output is protected against reverse polarity, overvoltage and short circuits for maximum reliability.

Superseal connectors

Automotive-grade Superseal connectors provide reliable, waterproof connections in the most demanding environments.

• All 1-12 cylinder engines (2/4-stroke)
• Up to 8 cylinders fully sequentially
• Up to 12 cylinders in wasted spark

MaxxECU GEN2 TRACK inputs

• 6 pulse inputs (VR/HALL): 2 with selectable 5/12V power supply, all with selectable pullups.
• 16 Analog inputs (selectable pullups)
• Dual wideband lambda (LSU 5.2/4.9/4.2)
• Dual knock sensor input

MaxxECU GEN2 TRACK outputs

• 8 injectors (Peak-hold high/low impedance) / GP outputs
• 8 IGN / GP outputs (selectable +5V/12V/GND)
• 8 GP Outputs (GND)
• 4 GP Outputs (+12V)
• 4 GP Outputs (H-bridge/E-Throttle)

MaxxECU GEN2 technical

• Superseal 1.0 connectors
• 550 kPa MAP sensor (4.5 bar / 65 PSI boost), user-serviceable, with BSP 1/8 thread
• 3-axis accelerometer (up to 8 G)
• ARM dual core CPU
• 6-22V operating voltage
• 8GB internal log capacity, 1000Hz, all 2000+ channels
• USB-C 480mbit/s (MTune PC communication)
• USB-C 12mbit/s (tablet charging)
• WIFI communication with MTune
• Bluetooth connectivity with MDash
• Dual CAN bus for expansion modules, OEM vehicle CAN, OBDII, CAN gearbox control
• Resolution on ignition: 0.1 degrees
• Resolution on injectors: 0.001 ms
• Performs fuel and ignition calculations 3,000 times per second.
• 2000Hz sampling rate on analog/digital inputs
• Weight: 545g
• 206x138x35mm including protruding connectors
• Black powder-coated aluminium case
• All inputs and outputs are safeguarded against overvoltage, reverse polarity, and short circuits.

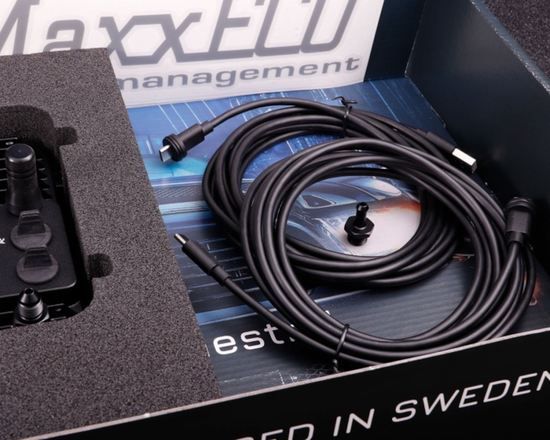

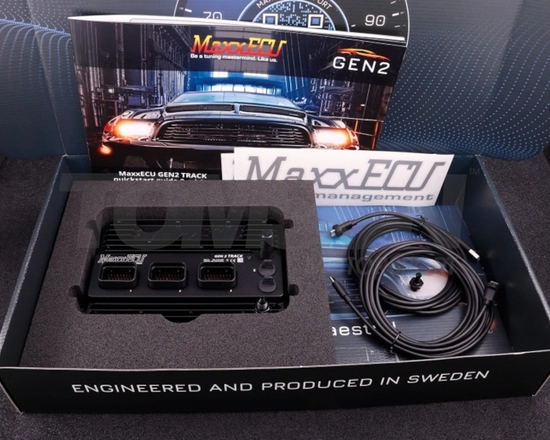

This kit contains:

• MaxxECU GEN 2 TRACK standalone ECU
• MaxxECU GEN2 MAP sensor BSP 1/8 to AN3 nipple
• MaxxECU GEN2 MAP sensor BSP 1/8 to hose nipple
• 2x MaxxECU GEN2 USB rubber USB-C cover
• MaxxECU GEN2 communication cable (USB-C to USB-A)
• MaxxECU GEN2 communication cable (USB-C to USB-C)
• MaxxECU GEN2 antenna (Bluetooth/WiFi)
