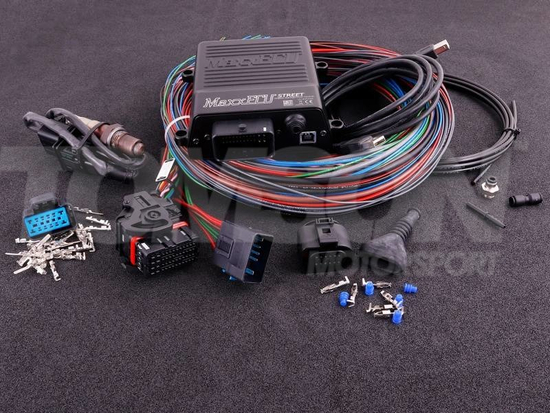

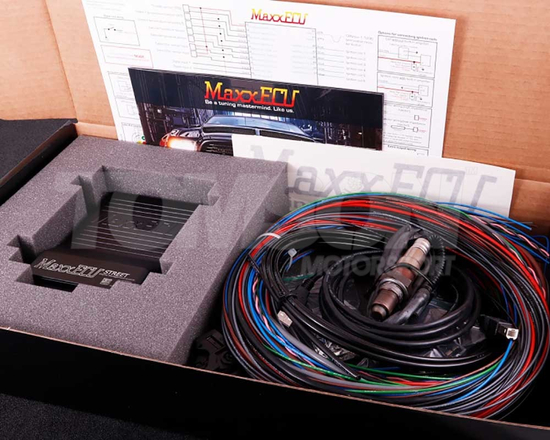

MaxxECU STREET 2249 stand alone computer (premium version with connector, harness, wideband LSU 4.9 O2 sensor and accessories)
MaxxECU STREET 2249 stand alone computer (premium version with connector, harness, wideband LSU 4.9 O2 sensor and accessories)
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
MaxxECU STREET advanced entry-level engine control system for up to 6 sequential cylinders. Up to 12 in wasted spark. Faster and easier tuning with built-in wideband lambda and a built-in MAP-sensor up to 3 bar / 43.5 psi of boost. Get started faster with the easy-to-use MTune PC-software.
Selected features:
- Aluminium casing
- Boost control
- Shift-cut
- Internal loggings
- Flex fuel
- Advanced warning system
- Built-in wideband lambda
- Launch control
- Anti-lag
- 6 injector outputs (high impedance)
- 6 ignition outputs
- 4 extra outputs (GPO)
- 4 extra analog inputs
- 2 extra digital inputs
- CAN bus (additional wires required)
Target engines for MaxxECU MINI:
- All 1-12 cylinder engines (4-stroke)
- Up to 6 cylinders fully sequentially
- Up to 12 cylinders in wasted spark
MaxxECU MINI inputs:
- Intake air temperature sensor (IAT)
- Coolant temperature sensor (CLT)
- Throttle position sensor (TPS)
- Lambda (WBO) sensor. Uses a sensor directly connected to the ECU without any additional electronics. Supports Bosch LSU 4.2, 4.9
- 2 trigger inputs. VR or digital. Automatic trigger level detection. The signals are processed by a completely separated processor for maximum performance and immunity against interference
- 2 extra temperature sensors. Can be used as switches or to control additional functions
- 2 extra 0-5V inputs. Can be used for additional sensors such as for measurement of fuel/oil pressure
- 2 digital inputs used for example for speed sensors (Hall) or switches
- Built-in 400kPa MAP-sensor for up to 3bar/43PSI of boost
MaxxECU MINI outputs:
- 6 injectors outputs. High impedance only
- 6 ignition outputs. 5V signal to drive ignition modules, CDI units or coils
- 4 outputs for extra features. Can be used to control virtually anything. Fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, warning lights, etc. GPO 1-3 (2A), GPO 8 (5A)
MaxxECU MINI technical:
- CAN bus (additional wires required)
- USB communication for tuning with MTune
- 8MB memory for internal logging, up to 1000Hz
- Supply voltage 8-22V
- ARM Cortex-M3 120MHz main processor
- Resolution on ignition: 0.1 degrees
- Resolution on injectors: 0.001 ms
- Updates the fuel and ignition calculations 2000 times per second
- The fastest PC communication on the market
- Weight: 520g
- 140x134x42mm (including mounting points, excluding connector)
- Aluminium casing
